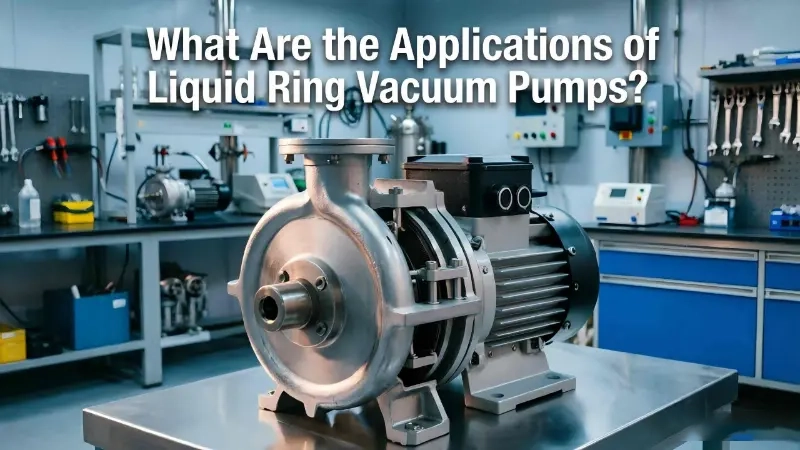

What Are the Applications of Liquid Ring Vacuum Pumps?
What Is a Liquid Ring Vacuum Pump?
Liquid ring vacuum pumps are common industrial vacuum devices. Using liquid sealing, they create steady vacuum and cope with harsh conditions including high moisture, vapor, mild corrosion and flammable explosive media. They outperform conventional vacuum pumps with reliable performance and low maintenance costs, widely used for vacuum extraction, gas compression and material treatment as key industrial auxiliary gear. This paper briefly introduces their definition, applications, merits, operation principles, models and maintenance guidance.
Core Application Scenarios of Liquid Ring Vacuum Pumps Across All Industries
With resistance to moisture and impurities as well as high safety, liquid ring pumps are applicable to most industrial sectors. Their core applications are listed below:
1.Chemical Industry
Used for vacuum distillation, negative pressure control of reaction kettles, solvent vapor recovery and corrosive waste gas treatment. Components are separated under low-pressure environments, and stable vacuum degree guarantees reaction purity and avoids material contamination.
2.Food and Beverage Industry
Oil-free and pollution-free, suitable for food-grade production. It is mostly adopted for vacuum concentration and flavor extraction of fruit juice and syrup, as well as vacuum packaging of fresh and processed food to remove air for bacteriostasis and fresh-keeping, extending product shelf life.
3.Pharmaceutical Industry
Compliant with sterile production requirements. It is applied to vacuum sterilization of medical devices and low-temperature vacuum drying of raw pharmaceutical materials to prevent degradation of medicinal ingredients caused by high temperature and steadily guarantee drug quality.
4.Paper and Pulp Industry
Mainly used for vacuum dewatering of pulp and slurry filtration to improve paper forming efficiency and finished product quality, and also assist in harmless treatment of papermaking waste.
5.Textile Industry
Provides a stable negative pressure environment for fabric dyeing to enhance dye adsorption rate and color fastness, and completes rapid vacuum dewatering of textiles after washing to boost production efficiency.
6.Power Generation Industry
Matched with steam turbine generator sets to continuously extract non-condensable gas inside condensers, maintain stable vacuum degree, reduce energy consumption and improve power generation efficiency.
7.Automobile Industry
Supplies stable vacuum sources for automobile brake boosters to ensure sensitive and safe braking, and provides precise pressure environments for fuel injection systems to optimize fuel delivery performance.
8.Environmental Protection and General Industries
Applicable to sewage treatment, waste gas collection and flue gas purification, while meeting general negative pressure process demands such as industrial vacuum defoaming, adsorption and degassing.
Core Advantages of Liquid Ring Vacuum Pumps
Compared with rotary vane, dry and oil-sealed vacuum pumps, liquid ring pumps boast remarkable adaptability advantages in industrial applications:
- Multi-functional and versatile: Capable of vacuum generation and low-pressure gas compression, compatible with various process scenarios.
- Low operation and maintenance costs: Only the impeller acts as a moving part, featuring a simple structure, low failure rate and extremely low maintenance and consumable costs.
- Eco-friendly: Water serves as the medium without oil pollution, causing no adverse impacts on materials and production environments.
- Moisture and steam resistant: Able to continuously process high-humidity gas containing condensate and trace impurities with stable performance without attenuation.
- Intrinsically safe and explosion-proof: Free of dry metal friction and sparks, enabling safe handling of flammable and explosive gases.
- Capable of continuous operation: Single-stage models achieve a vacuum degree of 98% and two-stage models reach 99.9%, supporting 24-hour non-stop operation.
Detailed Working Principle of Liquid Ring Vacuum Pumps
Liquid ring vacuum pumps operate stably with no friction loss, and their working process is divided into four steps:
1.Centrifugal Force Effect: The impeller rotates at high speed and flings the sealing liquid toward the inner wall of the pump casing to lay the foundation for power generation.
2.Liquid Ring Formation: Liquid evenly adheres to the pump wall to form a closed cylindrical liquid ring, constituting a sealed working structure.
3.Negative Pressure Suction: Variable cavities are formed between the eccentric impeller and the liquid ring. The expanding cavities draw in process gas, steam and air to generate vacuum.
4.Compression and Exhaust: The contracting cavities compress gas, which is eventually discharged from the pump body to sustain a stable vacuum environment continuously.
The complete unit can withstand wet gas, condensed water and trace impurities, adapting to various harsh industrial working conditions.
Main Types of Liquid Ring Vacuum Pump Equipment
Classified by sealing liquid circulation modes into three categories, each matching different working condition loads:
1.Once-through Type The sealing liquid is used once and discharged directly. It features a simple structure and low manufacturing cost, suitable for ordinary, discontinuous and low-load working conditions.
2.Partial Circulation Type Part of the liquid is recycled and reused while the rest is discharged, balancing cost and efficiency. It fits conventional production scenarios with medium loads.
3.Full Circulation Type The sealing liquid operates in a closed loop with minimal loss and superior energy efficiency, ideal for high-steam, high-impurity and 24-hour continuous high-intensity production lines.
Daily Equipment Maintenance Tips to Extend Service Life
Liquid ring pumps feature high durability, and long-term stable operation can be achieved through simple maintenance. Key points are as follows:
1.Check sealing performance: Regularly inspect gaskets and pipeline sealing conditions to eliminate air and liquid leakage and prevent vacuum degree drop.
2.Control fluid quality: Timely replace contaminated and deteriorated sealing liquid to avoid impeller abrasion and pump efficiency reduction caused by impurities.
3.Inspect core components on patrol: Periodically check impellers and pump chambers, clear scale deposits and investigate corrosion and wear to eliminate faults in advance.
Conclusion
The core application of liquid ring vacuum pumps is to provide a stable vacuum environment for various complex industrial working conditions, with outstanding performance in handling high-humidity, steam-laden, corrosive and flammable and explosive gases. Omron Tech Pumps focuses on the research, development and production of highly adaptable and durable liquid ring vacuum pumps, and can provide accurate model matching schemes for different working conditions. Proper model selection and standardized maintenance can effectively improve production line stability and efficiency, making liquid ring vacuum pumps indispensable core equipment for industrial negative pressure systems.
